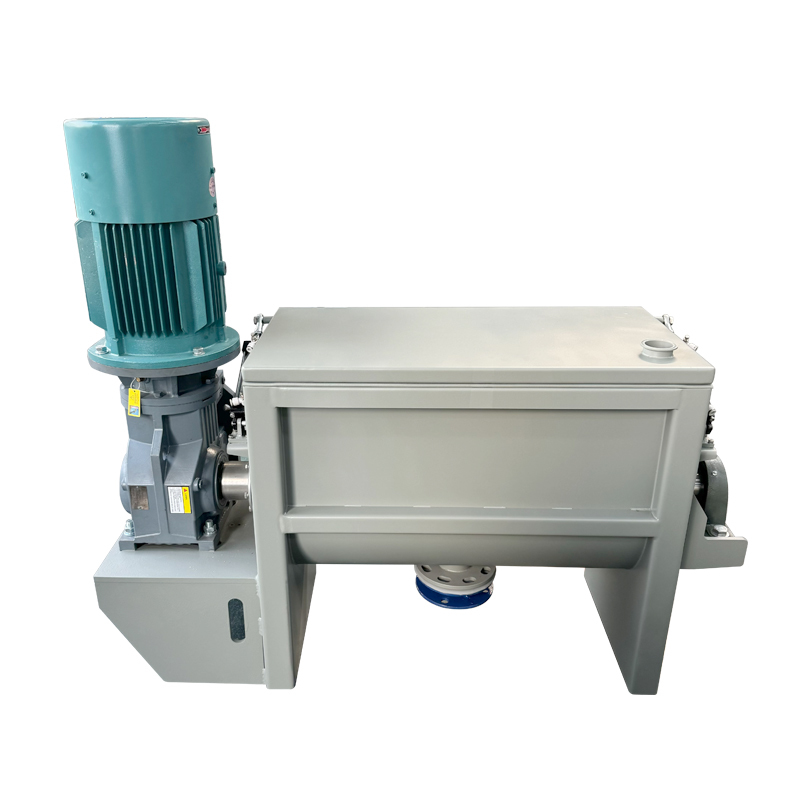

Ribbon Blender

Product description

The helical ribbon mixer is an efficient equipment for mixing powders with powders or powders with liquids. Its core structure is the double-layer helical ribbon inside the container (usually with opposite helical directions inside and outside). It is widely used in industries such as chemical engineering, medicine, food, and construction materials, especially suitable for handling large volumes, high-viscosity or fiber-containing materials. It features high mixing efficiency, strong adaptability, and easy operation.

Working principle

The working principle of the helical ribbon mixer is based on the special movement of the helical ribbons to achieve material mixing: After the equipment is started, the motor drives the double-layer helical ribbons (the inner and outer helical ribbons rotate in opposite directions) inside the container to rotate. The inner helical ribbon will push the material from the middle area of the mixing container to both ends, while the outer helical ribbon simultaneously pulls the material from both ends back to the middle. Through this reciprocating convection circulation of the material within the container, different components of the material interpenetrate and diffuse in the continuous relative motion, ultimately achieving a uniform mixing effect. This design can effectively reduce dead corners in material mixing and improve mixing efficiency.

Product features

- High efficiency in mixing: Through the convection circulation design of the double-layer screw blades, it can quickly achieve uniform mixing of the materials, significantly reducing the mixing time, especially suitable for handling large-capacity materials.
- Strong adaptability: It can be widely applied to the mixing of powders and powders, powders and liquids, and can effectively handle special materials with high viscosity, fibrous structure, and easy agglomeration. The applicable industries include chemical engineering, medicine, food, building materials, etc.
- Excellent mixing effect: The gap between the screw blades and the inner wall of the container is small, which can reduce mixing dead zones and ensure that all parts of the materials are mixed evenly, avoiding the situation where some parts of the materials are not fully mixed.
- Simple operation: The structure design is simple, the operation is stable, and the mixing process can be adjusted by controlling parameters such as the motor speed, making maintenance and maintenance relatively convenient.
- Flexible capacity: According to production needs, it can be designed with different specifications of volumes, ranging from laboratory small equipment to industrial large production lines, capable of adapting to different scales of production requirements.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

Production Line Diagram

1. Put your materials into the weighing silo

2. Enter the required weight of each material in the control system.

3. The ingredient you want will enter the weighing hopper.

4. The weighing hopper is connected with a vacuum conveyor.

5. The vacuum conveyor will suck the material into the mixer

6. After mixing, the material will feed into the packing machine by the vacuum conveyor

7. The packing machine will fill 2kg of material into your bags and seal the bags

Product details

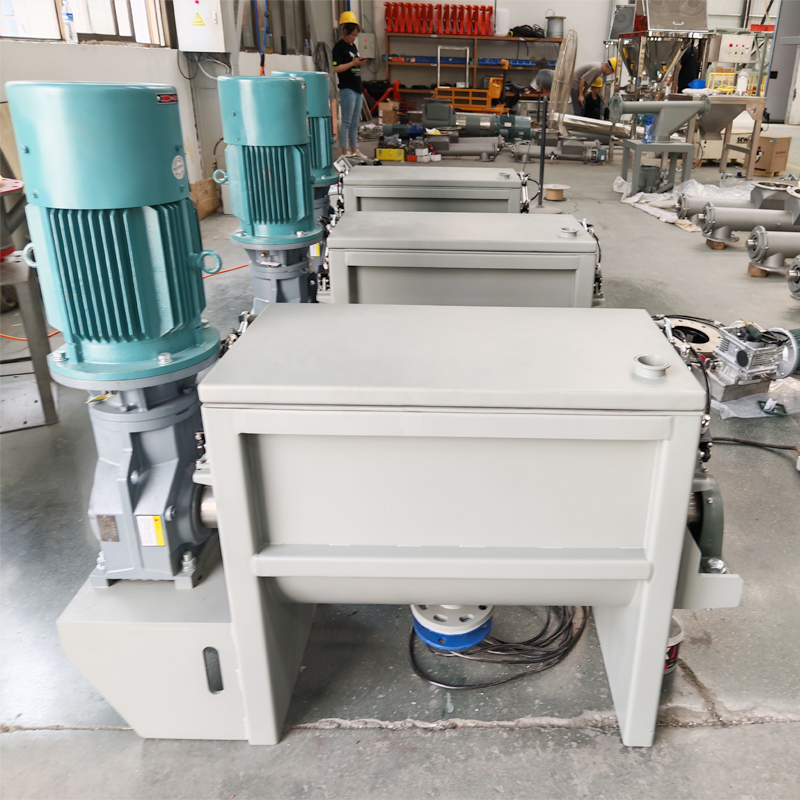

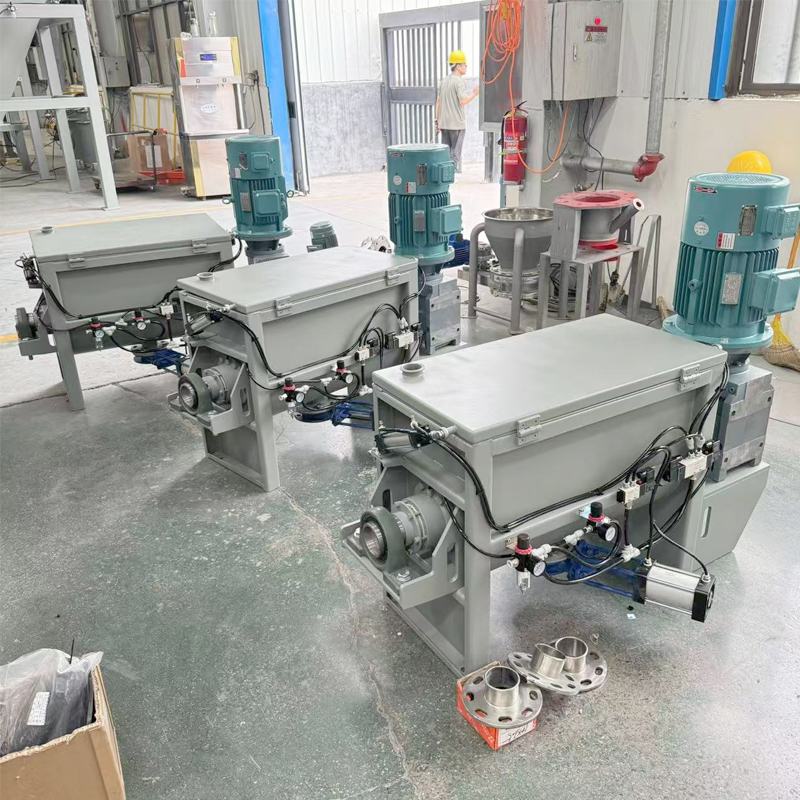

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
