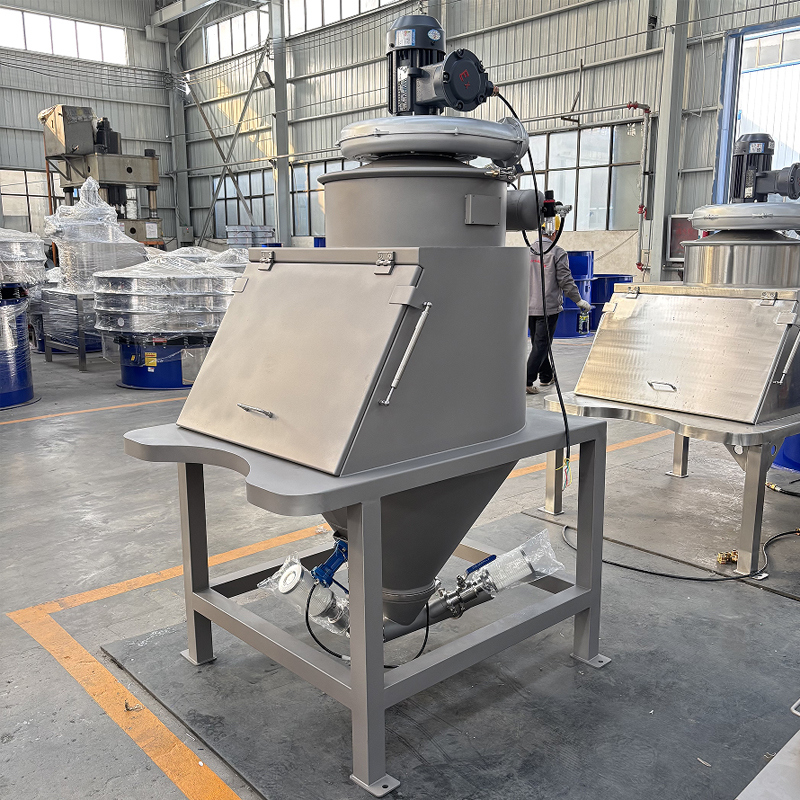

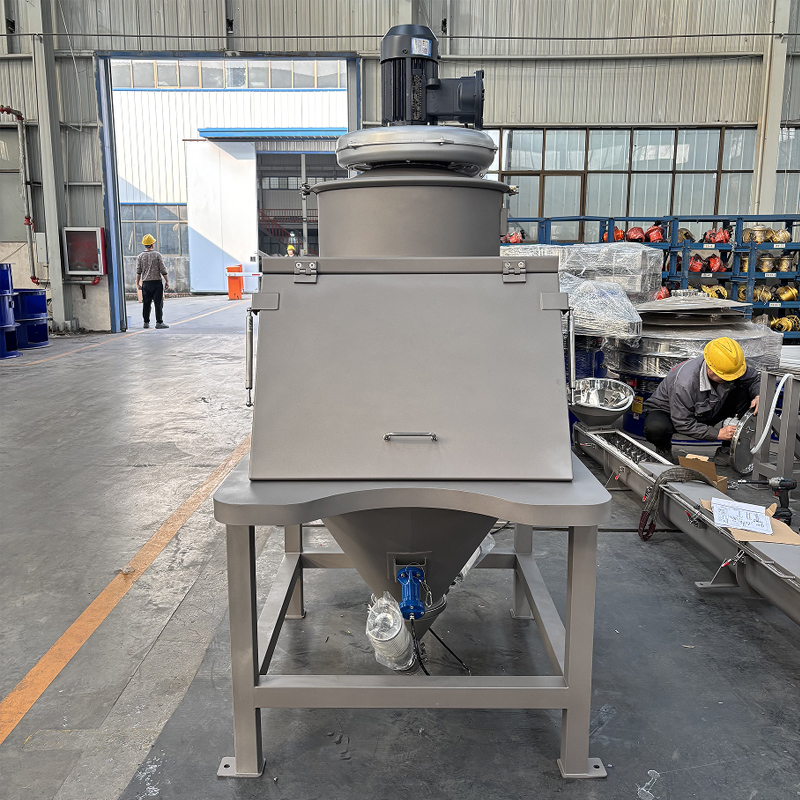

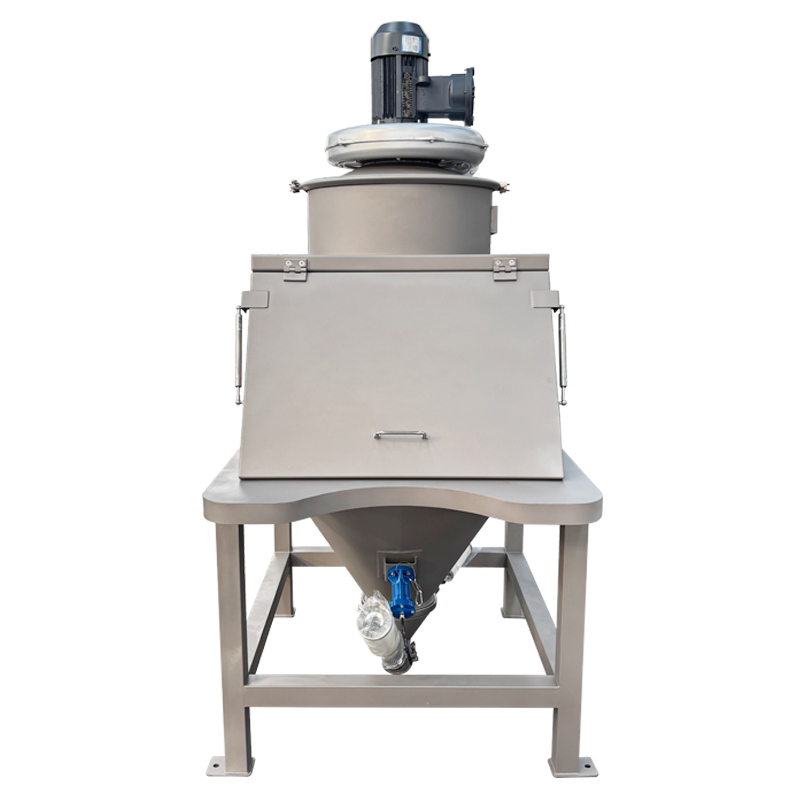

Bulk Bag Unloader

Product description

The dust-free feeding station is a well-designed operation platform, mainly used to achieve clean and efficient transfer of powdered and granular materials in industrial production. Through an integrated sealed structure, it can effectively collect and control dust when the materials are transported from the packaging bag to the next process, significantly improving the working environment in the workshop, ensuring the health of operators, and reducing material loss. This equipment has a sturdy structure, is easy to clean and maintain, and is one of the important equipment for enhancing the automation level and environmental protection standards of modern production lines.

Working principle
The dust-free feeding station achieves clean and efficient powder and granular material feeding through a core design of enclosure, negative pressure, and filtration. Its operation begins in a sealed chamber where the materials are fed in, effectively preventing dust from escaping at the source. Simultaneously, an internal fan is continuously running, creating a stable micro-negative pressure within the chamber, which can effectively suppress and collect the dust that is raised. The dusty airflow is purified by an efficient filter before being discharged. The intercepted dust is returned to the feeding hopper under the action of the pulse cleaning system, and all the materials are safely transported to the downstream process through the bottom outlet, ensuring the entire process effectively controls dust and maintains the cleanliness of the environment and the materials.

Features & Benefits

OK. Here are the streamlined features and advantages of the dust-free material feeding station for you:
Main Features:
1. Sealed design: The feeding process is completed within a fully sealed chamber, physically isolating dust.
2. Integrated filtration: Built-in high-efficiency filters capture and separate dust immediately.
3. Negative pressure control: Utilizing a blower to create a slight negative pressure, effectively suppressing and collecting dust.
4. Automatic dust cleaning: Equipped with a pulse cleaning system, it automatically cleans the filter material, maintaining high efficiency.
5. Structural optimization: Modular design, facilitating connection to the production line, with simple operation and maintenance.
Core Strengths:
1. Ensure health and safety: Eliminate the risk of dust inhalation and create a safe and clean working environment.
2. Enhance environmental protection: Effectively control dust emissions and significantly improve the air quality in the workshop.
3. Reduce material loss: The collected dust can be recycled and reused, increasing the yield and saving costs.
4. Improve production efficiency: Achieve rapid and tidy material feeding, facilitating integration and reducing downtime.
5. Guarantee product quality: Prevent cross-contamination and foreign matter intrusion, ensuring the purity of raw materials.

Product parameter

Production line diagram

1. Workers feed powder into the dumping station

2. Vacuum conveyor transfer the powder to the mixer

3. Starting mixing
