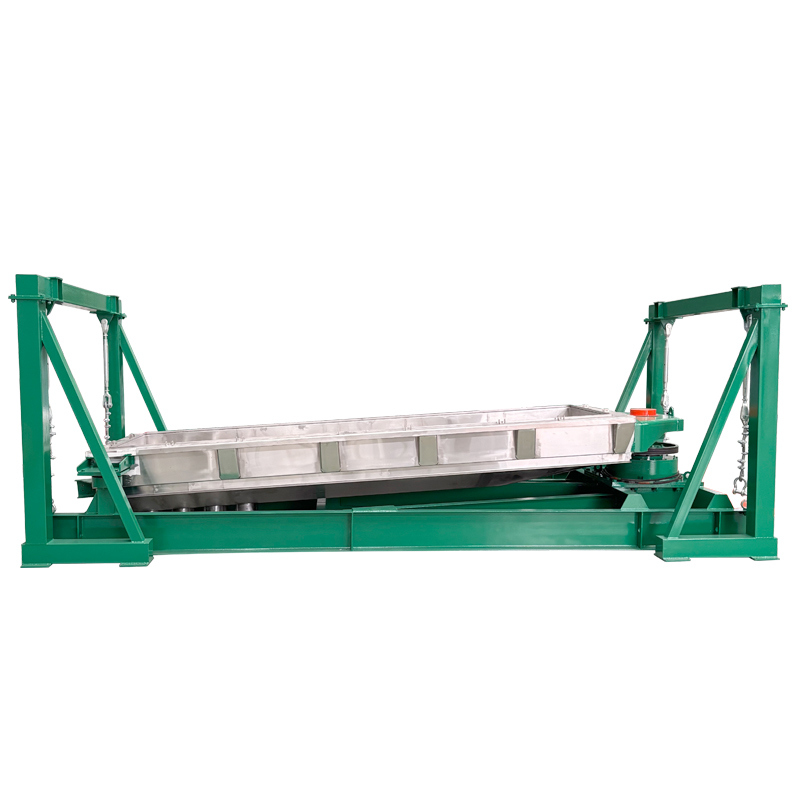

Gyratory Vibrating Screen

Product description

The planar cyclone screen is an efficient and versatile fine screening equipment. Its core feature is the use of nearly horizontal screen mesh and a unique planar circular motion. This design enables the materials to fully spread out on the screen surface and gently roll forward, thus achieving high-precision classification. It is particularly suitable for handling fragile, sheet-like or materials that require fine classification. It has the advantages of high screening accuracy, large output, without damaging the particle shape, as well as stable operation and low noise. It is widely used in various industries such as chemical engineering, food, metallurgy, etc.


Working principle
The planar cyclone screen is an efficient and versatile fine screening equipment. Its core lies in being driven by two counter-rotating vibration motors, which causes the screen mesh to undergo a unique approximately circular rotary motion on the horizontal plane. The materials do not simply project forward on the screen surface; instead, they are affected by the combined action of centrifugal force and inertia force, gently rolling, spreading out, and advancing in a spiral line. This motion characteristic enables the materials to be fully stratified, with fine particles quickly passing through the screen, while effectively preventing the screen holes from getting clogged and maintaining the original shape of the materials to the greatest extent. Therefore, it is particularly suitable for processing materials in industries such as chemicals, food, and medicine that are fragile, in sheet form, or require high-precision classification. It is renowned for its high screening accuracy, large output, and stable operation.

Product Features

1.High screening accuracy
The planar rotary motion enables the materials to fully disperse and roll, resulting in more fine particles passing through the screen, and the classification is precise.
2. High processing capacity
The material travels a long spiral path, and the effective utilization rate of the screen is high, resulting in a significant increase in output per unit time.
3. Maintain particle integrity
The gentle horizontal oscillation motion is particularly suitable for fragile crystals and sheet-like materials, with an extremely low rate of breakage.
4. Excellent prevention of blockage
The combination of micro-vibration and material tumbling effectively prevents the clogging of the sieve holes, making it suitable for fine powder and slightly viscous materials.
5. Smooth and reliable operation
The vibration motor force system is balanced, causing little impact on the foundation. The equipment operates smoothly with low noise and has a long service life.
6. Sealing and Environmental Protection
It features an easy-to-implement fully enclosed design, effectively controlling the escape of dust and meeting the requirements of clean production.
7. Easy maintenance
The structure is simple, the screen replacement is quick, the parameters can be adjusted flexibly, and it is suitable for various material characteristics.

Product parameter

Schematic diagram


Detail display

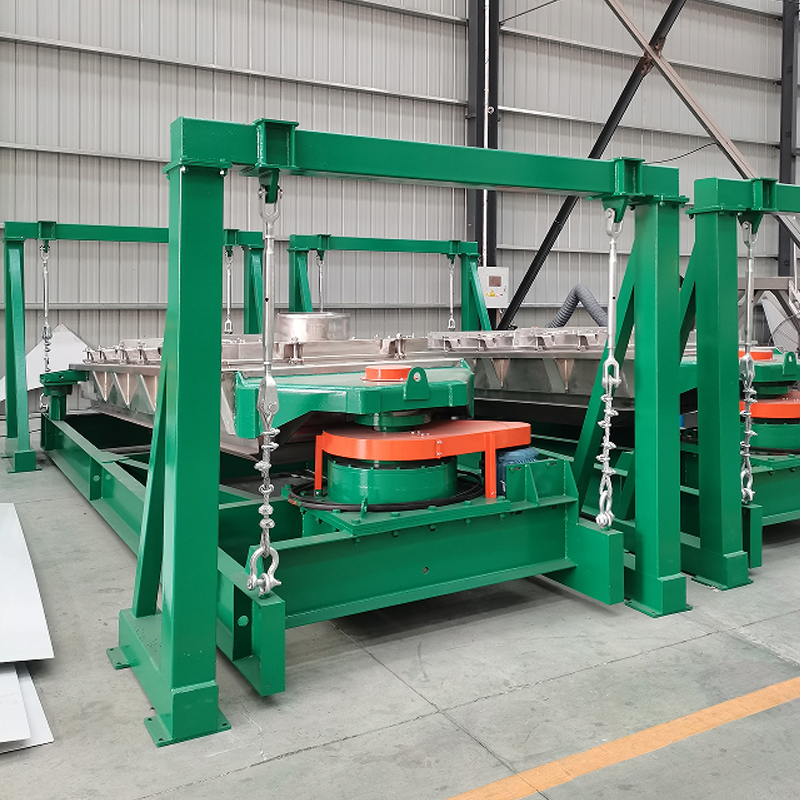

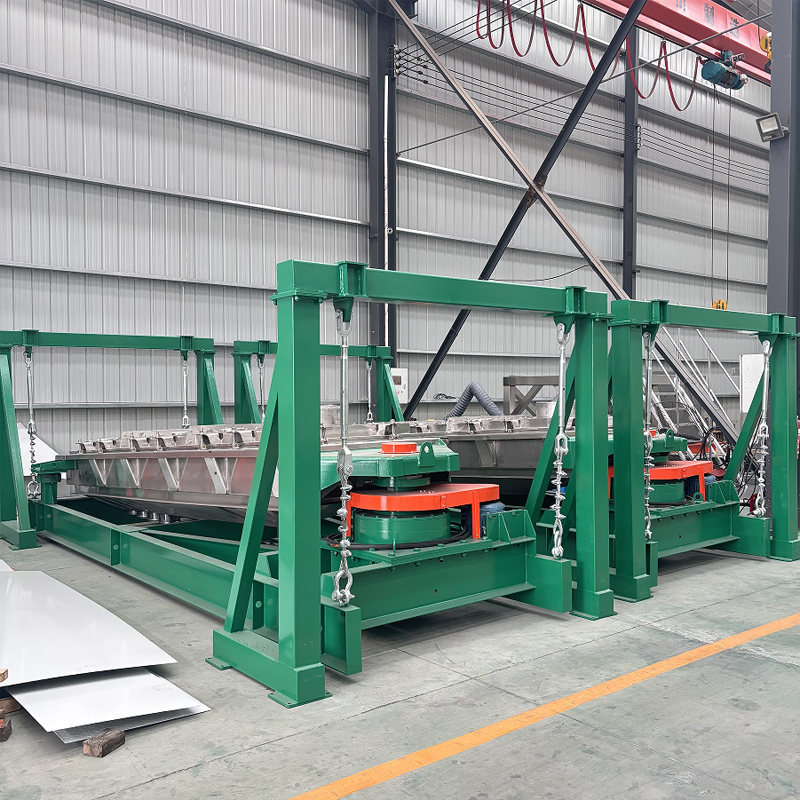

Product display
