Ribbon Blender

Product description

The helical ribbon mixer is a highly efficient and versatile industrial mixing device, mainly used in multiple fields such as chemical engineering, food, feed, and building materials. It is specifically designed for uniformly mixing powdery, granular, or materials with a certain viscosity. Its core advantages lie in its fast mixing speed and high efficiency, capable of completing the mixing of large quantities of materials in a short time. Additionally, the equipment features a compact structure, smooth operation, and low energy consumption.

Working principle

The working principle of the helical mixer is based on forced convection. The core of it lies in the fact that the stirring shaft is equipped with inner and outer double-layer helical blades with opposite directions: during operation, the outer helical blade pushes the material from both sides towards the center, while the inner helical blade pushes the material from the center towards both sides. This bidirectional movement forms a strong vortex and shear force within the cylinder, enabling the material to rapidly achieve uniform mixing through rolling and circulation.

Product features

Efficient and uniform
The mixing speed is fast and the uniformity is high. The efficiency is far superior to that of traditional mixing equipment.

Wide applicability
It can handle powders, particles, semi-fluids, high-viscosity materials, as well as solid-solid and solid-liquid mixtures; it can be optionally equipped with heating, cooling, and liquid spraying functions.

The discharge is rapid and there is little residue.
The discharge is fast. With the design of a large opening or a flush valve, combined with the screw belt for propulsion, the residue is extremely low.

Stable operation, low energy consumption
The mixing process is gentle, causing minimal damage to the materials; the structure is compact, with relatively low power requirements, ensuring smooth and reliable operation.

Easy to clean, convenient for maintenance
The interior is smooth without any dead corners. The bearings are placed externally to prevent contamination, making cleaning and maintenance easy.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

Product details

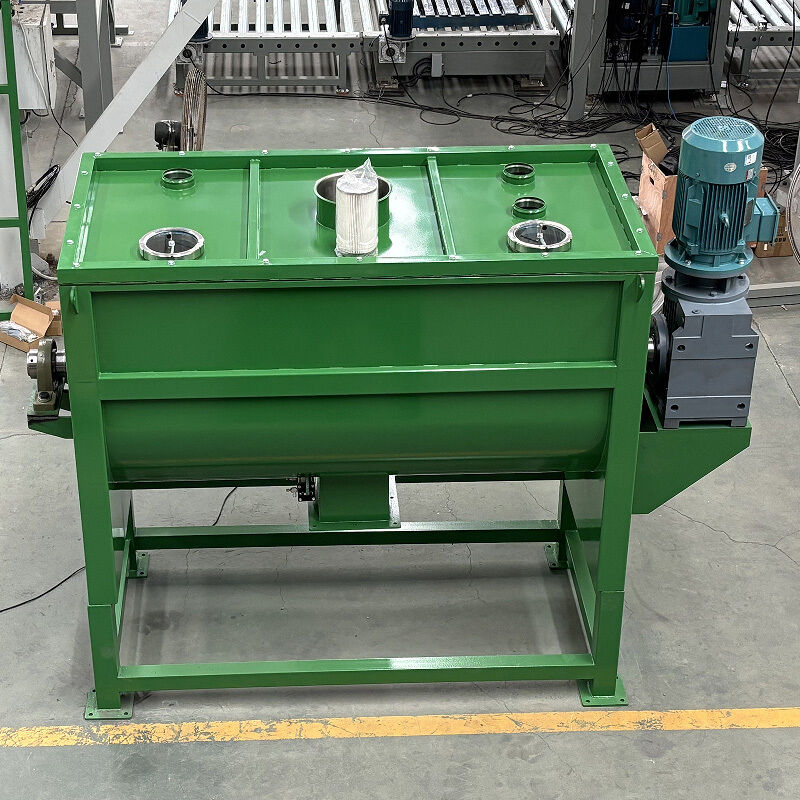

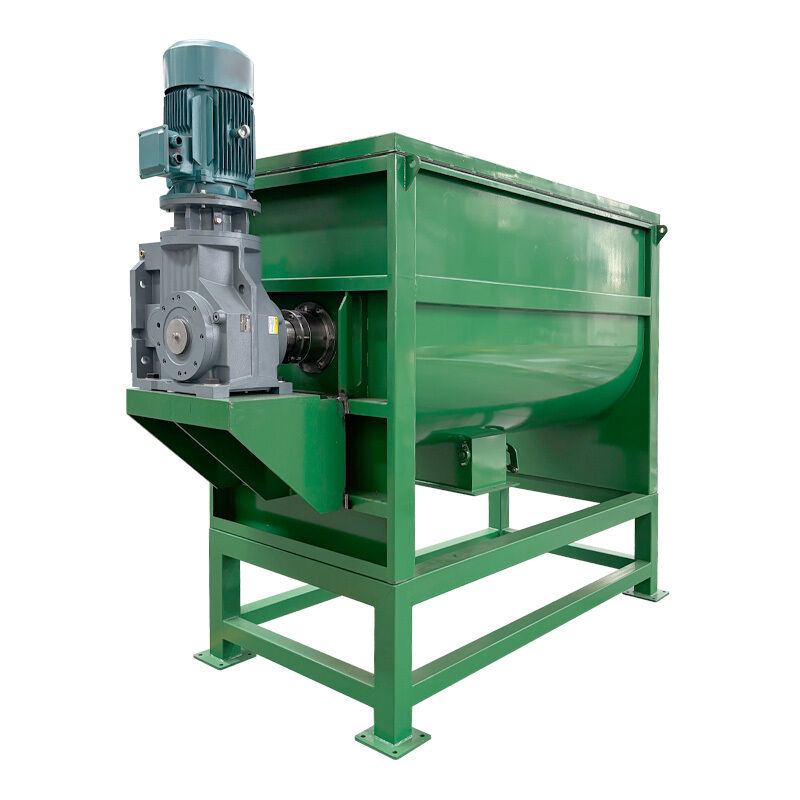

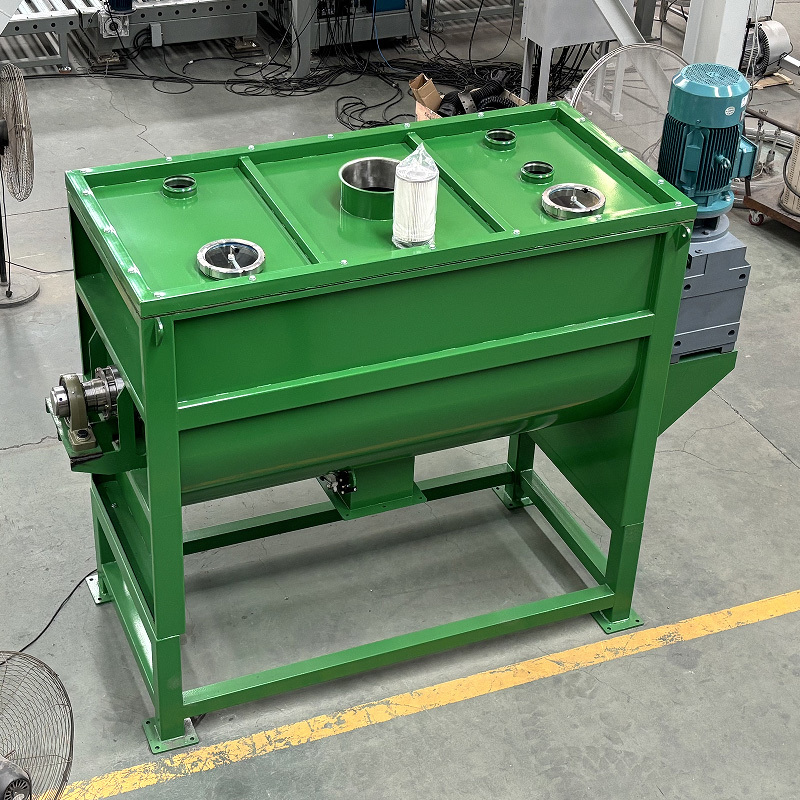

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
